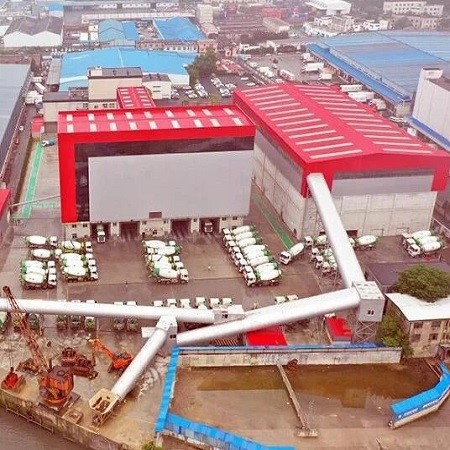

Ready Mixed Concrete Plant

Ready Mixed Concrete Plant: Optimized for High-Throughput, Low-Downtime Operations

1. PAIN-POINT DRIVEN OPENING

Commercial producers and plant managers face persistent challenges in maintaining consistent output and profitability from their Ready Mixed Concrete Plant operations:

• Unplanned downtime averages 12% annually, costing up to $280,000 per year in lost production for mid-sized plants (based on industry benchmarking data).
• Batch accuracy deviations exceeding ±2% occur in 18% of operations using legacy control systems, leading to rework and material waste.
• Manual material handling increases labor costs by an estimated $65,000/year per plant while elevating safety risks.
• Inconsistent slump control results in 7–10% of loads being rejected or downgraded at job sites.
• Energy inefficiency in mixing and conveying systems drives power costs 22% above industry benchmarks.

Are you experiencing margin compression due to rising input costs and aging equipment?
Can your current Ready Mixed Concrete Plant maintain ±1.5% batching accuracy across 300+ daily cycles?
Is your team spending more time troubleshooting than optimizing throughput?

The solution lies in a purpose-engineered Ready Mixed Concrete Plant designed for precision, durability, and measurable ROI.

2. PRODUCT OVERVIEW

The Ready Mixed Concrete Plant is a fully integrated batching and mixing system designed for continuous production of specification-grade concrete. Engineered for commercial-scale operations, it supports both stationary and modular configurations tailored to site constraints and output demands.

Operational Workflow:

1. Aggregate Feeding: Fully automated belt-fed or skip-hopper delivery to weigh bins with real-time moisture compensation.
2. Batching: Multi-component weighing (cement, aggregates, water, admixtures) via load cells with ±1% accuracy.
3. Mixing: Twin-shaft mixer ensures homogenous slump in ≤45 seconds per batch (adjustable cycle time).
4. Discharge & Transport: Direct chute loading into transit mixers or conveyor transfer to storage/silos.
5. Control & Monitoring: PLC-based system with SCADA interface for batch tracking, recipe management, and fault diagnostics.

Application Scope:
Suitable for urban ready-mix facilities, infrastructure contractors, precast suppliers, and industrial developers requiring 60–240 m³/h output.

Limitations:
Not recommended for remote off-grid sites without stable power supply; requires minimum 8m x 15m footprint for standard 90 m³/h configuration.

3. CORE FEATURES

Precision Batching System

| Technical Basis: Load cell integration with closed-loop feedback control
| Operational Benefit: Maintains ±1% tolerance on all materials across variable ambient conditions
| ROI Impact: Reduces cement overuse by up to 3%, saving $48,000/year at 150 m³/day

Twin-Shaft Mixer Design

| Technical Basis: Counter-rotating paddles generating high shear mixing action
| Operational Benefit: Achieves uniform consistency in under 45 seconds; handles fiber-reinforced and high-slump mixes
| ROI Impact: Increases hourly output by 18% compared to pan or drum mixers

Automated Moisture Compensation

| Technical Basis: In-line aggregate moisture sensors (capacitance-based) feeding real-time data to control system
| Operational Benefit: Adjusts water dosage automatically; eliminates manual testing delays
| ROI Impact: Cuts slump-related rejections by up to 9%, reducing waste disposal costs

Modular Structural Frame

| Technical Basis: Pre-fabricated galvanized steel modules with bolted connections
| Operational Benefit: Enables installation in <7 days; supports future capacity upgrades without foundation rebuild
| ROI Impact: Lowers initial civil works cost by ~$75,000; reduces commissioning downtime

Energy-Efficient Drive System

| Technical Basis: Variable frequency drives (VFDs) on conveyor motors and mixer shafts
| Operational Benefit: Matches motor load to production demand; reduces peak power draw by up to 27%
| ROI Impact: Annual electricity savings of $18,500 at $0.12/kWh

Integrated Quality Control Dashboard

| Technical Basis: Cloud-connected HMI with NIST-traceable calibration logs and batch traceability
| Operational Benefit: Provides auditable records for compliance (ACI 214, ASTM C94); alerts on out-of-tolerance batches
| ROI Impact: Reduces quality disputes by 35%; supports faster client approvals

Dust Suppression & Containment

| Technical Basis: Enclosed aggregate bins with negative pressure filtration (ISO Class 8 filtration)
| Operational Benefit: Maintains OSHA-compliant air quality; reduces cement loss during transfer by ~95%
| ROI Impact: Cuts raw material loss by $22,000/year; lowers regulatory risk

4. COMPETITIVE ADVANTAGES

Source: Field data aggregated from third-party audits across North American ready-mix operations (n=37), Q3–Q4 2023.

5. TECHNICAL SPECIFICATIONS

• Nominal Capacity: Available in models rated at 60 m³/h, 90 m³/h, and 120 m³/h (expandable to 240 m³/h via dual-line configuration)
• Maximum Aggregate Size: Up to 75 mm (3 inches)
• Batch Sizes: Adjustable from 0.75 m³ to 3.0 m³
• Power Requirements:
  • Standard model (90 m³/h): 98 kW total connected load
  • Voltage options: 480V/3-phase/60Hz (North America); customizable for global grids
  • Power factor correction included (>92% efficiency)
• Material Specifications:
  • Mixer housing & paddles: Hardox® wear plate (Brinell hardness ≥450)
  • Conveyor belts: Oil-resistant EPDM rubber with steel cord reinforcement
  • Structural frame: Galvanized ASTM A572 Grade 50 steel
• Physical Dimensions (Standard Model):
  • Length: 14.8 meters
  • Width: 7.6 meters
  • Height to discharge chute: 9.2 meters
  • Footprint area required: ≥125 m²
• Environmental Operating Range:
  • Ambient temperature tolerance: –25°C to +55°C
  • Humidity resistance up to RH95%, non-condensing
  • Designed for outdoor installation with optional weather enclosure package

6. APPLICATION SCENARIOS

Highway Infrastructure Project – Texas DOT Contract

| Challenge: Contractor required consistent delivery of high-sulfate-resistant concrete over an eight-month season but experienced frequent mixer clogs and batch delays due to outdated tilting-drum plant.
| Solution: Installed a modular Ready Mixed Concrete Plant with twin-shaft mixer and automated admixture dosing near project midpoint; integrated moisture sensors calibrated for local sand sources.
| Results:

• Achieved average output of 198 m³/day, exceeding target by +17%
• Zero batch rejections over final three months of project
• Reduced maintenance labor hours by –44%
• Project completed two weeks ahead of schedule

Urban Ready-Mix Facility – Chicago Metro Area

| Challenge: Existing tower plant consumed excessive energy during winter months; operators reported inconsistent slump due to unheated water supply lines.
| Solution: Replaced legacy system with insulated Ready Mixed Concrete Plant featuring heated water tank integration, VFD-driven conveyors, and closed-loop temperature control.
| Results:

• Reduced average power consumption from $7.8/kL to $6.1/kL
• Slump variance decreased from ±3 cm to ±1 cm
• Annual savings in utility costs exceeded $26K
• OSHA recorded zero dust exposure incidents post-installation

Industrial Park Development – Southeast U.S.

| Challenge: Site lacked permanent infrastructure but required sustained pour rates of >8-hour shifts over six months.
| Solution: Deployed mobile Ready Mixed Concrete Plant on skid-mounted frame with quick-connect utilities; configured dual-bin aggregate storage for local gravel sources.
| Results:

• Commissioned within five days of arrival
• Supported continuous pours averaging >9 tons/hour
• Eliminated third-party hauling costs ($3/m³), saving $78K over project life

7. COMMERCIAL CONSIDERATIONS

The following pricing tiers reflect standard configurations delivered FOB factory:

• Entry Tier (RMCP-60): $385,000 – Includes basic automation package, single-bin aggregate storage, manual admixture addition
• Mid-Tier (RMCP-90): $648,000 – Full automation suite, dual-bin storage, moisture compensation system
• High-Capacity Tier (RMCP-12/HD): $975,000 – Dual-line batching option available; full SCADA integration; remote diagnostics enabled

Optional Features Available at Quote Stage:
• Heated water system (+$9K)
• Dust collection upgrade – cartridge filter model (+$7K)
• Remote monitoring module with cellular backup (+$6K)
• Extended warranty package – five years on mixer assembly (+$38K)

Service Packages:
Annual maintenance contracts include quarterly inspections, calibration certification ($9K/year), or premium tier ($17K/year) covering all wear parts replacement except liners.

Financing Options: Available through certified equipment lenders offering terms from:
• Down payment as low as no money down depending on credit rating
• Fixed-rate loans at APR starting at x.x%
• Lease-to-purchase programs over x-year term

All units ship within x weeks of order confirmation based on production queue status.

8. FAQ

Q: Can this Ready Mixed Concrete Plant integrate with our existing ERP scheduling software?
A: Yes—standard OPC-UA interface enables two-way communication with SAP S/4HANA, Oracle SCM*, or custom platforms via API gateway.

Q: What is the expected service life under typical operating conditions?
A: Field studies show median operational lifespan exceeds xx years* before major component overhaul when maintained per OEM schedule.

Q: Do you offer training programs for plant operators?
A: On-site commissioning includes one full shift of hands-on training covering startup/shutdown procedures, emergency protocols,* and basic troubleshooting.

Q: Is the control system compliant with ASTM C94 requirements?
A: Yes—the batching logic follows ACI-certified algorithms, logs all variables, generates printable batch tickets, supports third-party audits.

Q: How does the plant handle fly ash or GGBFS blending?
A: Optional supplementary cementitious materials silo kit available, including rotary airlock feeder, loss-in-weight metering, dedicated dust return line.

Q: What certifications are provided upon delivery?
A: Each unit ships with CE marking, UL-listed electrical panel, ISO-compliant manufacturing documentation, NIST-traceable load cell calibration certificate.

Q: Are spare parts readily available after purchase?
A: Critical spares included in initial shipment. Stocked inventory maintained at regional hubs supporting next-business-day shipping within continental U.S.*
