Concrete Batching Plant Wholesale: Engineered for High-Volume, Cost-Efficient Production

1. PAIN-POINT DRIVEN OPENING

Commercial producers and plant managers face persistent challenges in maintaining consistent output, minimizing downtime, and controlling production costs. When sourcing a Concrete Batching Plant Wholesale, these issues are magnified by inconsistent equipment quality, poor scalability, and hidden maintenance expenses.

Consider these common operational pain points:

• Unplanned downtime averages 12–18 hours per month in mid-tier batching operations due to component failures—costing up to $7,500 in lost productivity monthly for a medium-volume plant.
• Batching inaccuracies exceeding ±2% in aggregate and cement metering lead to material waste and non-compliant mixes, increasing rework rates by up to 9%.
• Manual calibration and maintenance cycles consume 20+ labor hours monthly, reducing available production time and increasing labor costs.
• Inflexible plant configurations limit adaptability to seasonal demand spikes or specialty mix requirements, constraining revenue potential.
• Energy inefficiency in older systems increases power consumption by 25–30%, directly impacting operating margins.

Are you evaluating a Concrete Batching Plant Wholesale solution that reduces downtime, improves batching precision, and delivers measurable ROI within 18 months?

2. PRODUCT OVERVIEW

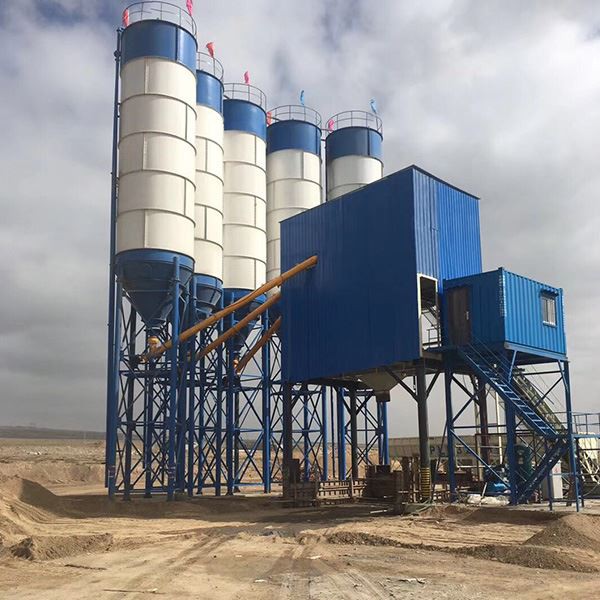

The Concrete Batching Plant Wholesale series is a modular, fully automated dry or wet mix batching system designed for commercial ready-mix producers, precast manufacturers, and large-scale construction contractors. Engineered for durability and repeatability, this system supports continuous operation in demanding environments.

Operational Workflow:

1. Material Infeed: Aggregates are conveyed via belt or skip hoist from silos or stockpiles into calibrated weighing hoppers.
2. Precise Weighing: Cement, water, admixtures, and aggregates are metered using load cell-based scales with ±1% accuracy.
3. Mixing Phase: Materials discharge into a twin-shaft mixer (standard) or planetary mixer (optional), ensuring homogenous mix in 30–45 seconds.
4. Discharge & Transport: Mixed concrete is delivered to transit trucks or molds via conveyor or chute systems.
5. Control & Monitoring: PLC-driven interface logs batch data, tracks material usage, and enables remote diagnostics.

Application Scope:

• Suitable for producing standard ready-mix, high-strength concrete, self-consolidating mixes (SCC), and fiber-reinforced concrete.
• Ideal for plants producing 40–180 m³/hour.
• Not recommended for mobile or temporary site setups without foundation preparation.

3. CORE FEATURES

### Modular Design | Technical Basis: Standardized skid-mounted components with ISO-compliant framing | Operational Benefit: Reduces installation time by 35%; allows phased capacity upgrades | ROI Impact: Cuts initial capital risk; enables scalability with demand growth

### Dual-Path Aggregate Feeding | Technical Basis: Parallel belt conveyors with variable-speed drives | Operational Benefit: Eliminates bottlenecks during peak loads; supports simultaneous coarse/fine aggregate batching | ROI Impact: Increases throughput by up to 22%, reducing truck wait times

### Load Cell-Based Weighing System | Technical Basis: IP68-rated stainless steel load cells with digital signal compensation | Operational Benefit: Maintains ±1% accuracy across temperature fluctuations and vibration | ROI Impact: Reduces material overuse by 1.8 tons per 1,000 m³ batched

### Twin-Shaft Mixer with Wear-Resistant Liners | Technical Basis: Hardened AR400 steel paddles and liners; hydraulic drive option available | Operational Benefit: Achieves complete homogenization in under 45 seconds; liner life exceeds 35,000 cycles | ROI Impact: Lowers maintenance frequency by 40%; extends mixer service life by 3+ years

### PLC Control System with SCADA Integration | Technical Basis: Siemens S7-1500 controller with HMI touchscreen interface | Operational Benefit: Enables real-time batch tracking, fault logging, and remote monitoring via Ethernet/Wi-Fi | ROI Impact: Reduces operator error by up to 30%; supports predictive maintenance scheduling

### Dust Suppression Package | Technical Basis: Enclosed aggregate transfer points with pulse-jet baghouse filters (99.5% capture efficiency) | Operational Benefit: Complies with OSHA/NIOSH particulate standards; protects equipment from abrasive dust ingress | ROI Impact: Reduces respiratory liability risks; lowers cleaning labor costs by $120/month

### Energy-Efficient Drive System | Technical Basis: VFD-controlled motors on conveyors and mixers; regenerative braking on hoists | Operational Benefit: Matches motor output to load demand; reduces peak power draw by up to 28% | ROI Impact: Lowers monthly energy costs by $650–$980 depending on local rates

4. COMPETITIVE ADVANTAGES

5. TECHNICAL SPECIFICATIONS

• Production Capacity:
  • HZS60 Model: 60 m³/hour
  • HZS90 Model: 90 m³/hour
  • HZS120 Model: 120 m³/hour
• Power Requirements:
  • Voltage: 380V/415V ±10%, Three-phase
  • Total Installed Power:
    • HZS60 – 75 kW
    • HZS90 – 115 kW
    • HZS120 – 165 kW
• Material Specifications:
  • Structural Frame: ASTM A36 carbon steel with epoxy-polyurethane coating
  • Mixer Housing & Liners: AR400 abrasion-resistant steel
• Physical Dimensions (HZS90):
  • Length: ~38 meters
  • Width: ~14 meters
  • Height (to top of silo): ~27 meters
  • Footprint Area Required: ~65m x ~35m including access zones
• Environmental Operating Range:
  • Ambient Temperature Range: –15°C to +45°C
  • Relative Humidity Tolerance (non-condensing): Up to RH95%

APPLICATION SCENARIOS

#### Ready-Mix Producer Expansion (North Texas)

Challenge: A regional producer faced chronic truck queuing due to outdated batching infrastructure limiting output to just over capacity during summer peaks—losing an estimated $97K annually in missed contracts.

Solution: Installed a wholesale HZS90 Concrete Batching Plant with dual-path aggregate feeding and VFD-driven conveyors at their Denton facility.

Results: Throughput increased from average of ~78 m³/hour to sustained output of ~93 m³/hour; batch cycle time reduced from average of ~72 sec/batch to consistent sub-52 sec cycles. Achieved full ROI within fourteen months through higher volume sales.

#### Precast Facility Modernization (Midwest U.S.)

Challenge: Repeated mix inconsistency led to rejected panels at a tilt-up wall manufacturer—scrap rate averaged $4K/month due to strength variance.

Solution: Deployed a Concrete Batching Plant Wholesale system featuring load cell-based metering and PLC-controlled admixture dosing calibrated for SCC mixes.

Results: Mix consistency improved from ±3.2% variation in slump flow down to ±1%, reducing scrap rate by $3K/month within six weeks post-installation; passed third-party QA audit on first attempt after implementation.

COMMERCIAL CONSIDERATIONS

The Concrete Batching Plant Wholesale line offers tiered investment options aligned with production volume needs:
